Use the I1iO color chart reader to achieve automation in printing or printing profile generation
Color Management
Color management creates unlimited opportunities for the application of novel inks on various substrates such as paper, fabrics, ceramics, and transparent films. To ensure color accuracy during these applications, it is necessary to create printer or press profiles for each combination of printer or press, ink, and substrate.
To this end, X-Rite offers an excellent tool to accelerate and simplify the creation of profiles.
Color Management Tools
i1Pro 3 Series

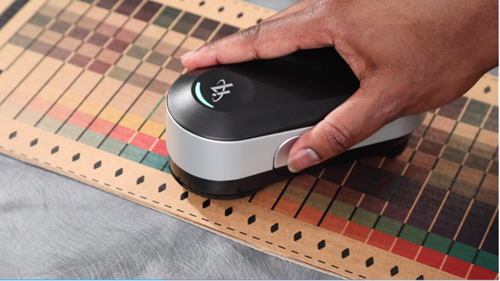

The i1Pro 3 series can meet almost any of your printing or press job needs. Among them, the i1Pro 3 and i1Pro 3 Plus are handheld spectrophotometers, with two software packages available to create profiles for all the devices in your workflow.
Question:
Do I need to print on glossy paper?
Answer:
i1Pro 3 is sufficient to meet your needs.
Question:
Do I need to print on specialty photo paper, vinyl, textiles, transparent films, corrugated paper, or backlit materials?
Answer:

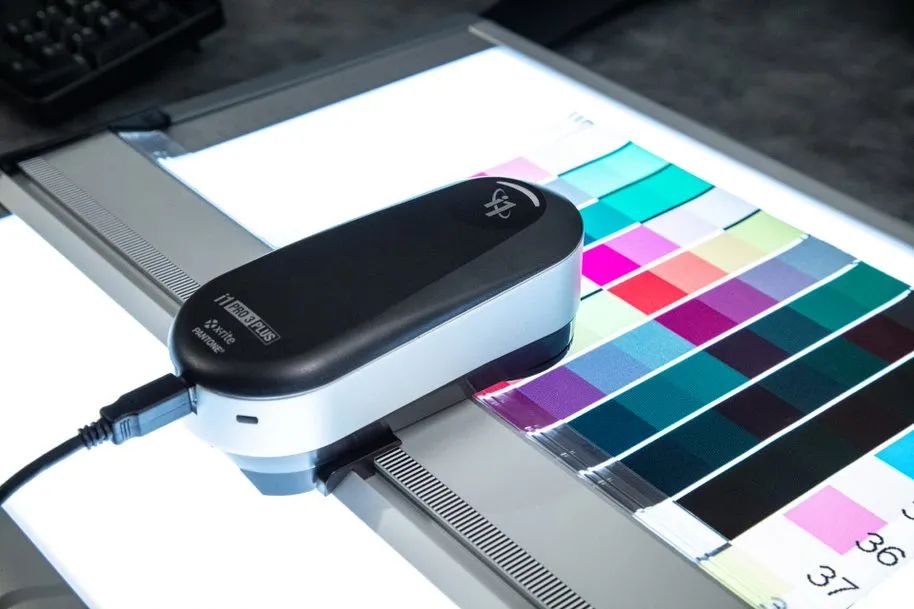

You need the i1Pro 3 Plus with a larger aperture to capture all the color data required to create accurate printer profiles. The i1Pro 3 Plus also comes with a polarization filter, which can improve profiling for textured and reflective media, reducing unwanted specular highlights, enhancing blacks for better dark detail, and providing richer colors on unique surfaces.
In high-volume production environments,
measuring test charts and creating these profiles
can be very time-consuming even with very advanced equipment!
Introducing automation technology
i1iO Fully Automated Chart Reader
The i1iO Fully Automated Chart Reader can completely take over the work of measuring test charts, which may involve hundreds or even thousands of color patches. Not only can it eliminate user errors in the workflow, but it also allows you to handle other tasks at your own pace while it is busy. It ensures consistency and reliability, and enables you to more quickly and easily meet your clients' innovative requirements.
Hands-Free Scanning Solution
X-Rite's fully automated patch readers support a wide range of media, inks, and press or printer combinations, and offer modes specifically designed for UV illumination and optical brighteners. In addition, they directly support X-Rite (as well as nearly all third-party) profiling software programs.
i1iO for i1Pro 3 and i1Pro 3 Plus

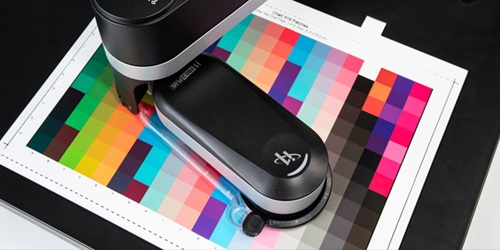

The i1iO for i1Pro 3 and i1Pro 3 Plus can be added to workflows at any time. Simply place the i1Pro 3 or i1Pro 3 Plus device onto the tray arm to perform hands-free patch reading. In scanning mode under M0 measurement conditions, i1iO can read over 500 patches per minute and quickly create profiles.
It features a mechanical arm fixed to the device that can move over the patches of the test chart. The i1iO can be height-adjusted for different media and is suitable for media up to 10 mm thick (up to 33 mm thick with an optional Z-axis spacer).
If you, like many others in the wide-format printing field, work with both flexible and rigid substrates, the i1iO's ability to quickly measure multi-page charts will be highly beneficial: simply define three position points and then command the software to run in single-scan or dual-scan mode. Even when the printer or press performs low-resolution printing, the i1iO scanning table can automate manual measurement tasks that would otherwise be very tedious.
Is automated scanning worth the investment?
Fully automated patch readers can measure and control color on almost any substrate, improving production efficiency. Therefore, any company doing daily QA evaluations or frequently creating ICC profiles can benefit.

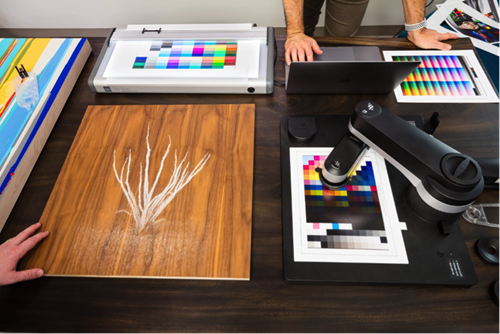

Additionally, automated scanning with the i1Pro 3 Plus makes applications on non-traditional media possible, such as wood, acrylic, textiles, and backlit materials. For example, the i1iO scanning table used with the i1Pro 3 Plus by X-Rite created profiles for a recent project at Four Hands Studio in Austin, Texas, by automating the measurement of reflective calibration targets.
Popular Product Recommendations

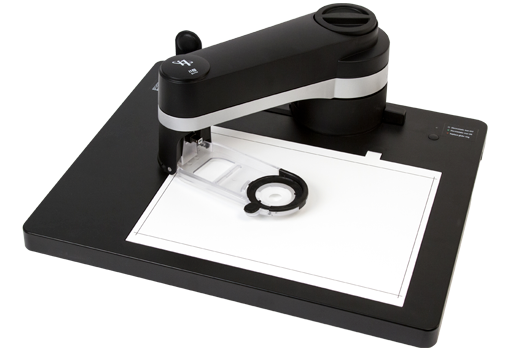

i1iO for i1Pro 3 & i1Pro 3 Plus
i1iO is an intelligent automatic test data recognition system, specially designed for photographers, designers, and printers who want to get rid of manual color strip reading.
i1 Pro Series Portable Colorimeter
the i1 Pro series can quickly and easily create custom screen color calibration profiles for cameras, monitors, digital projectors, scanners, and printers, ensuring color accuracy from capture to output.
