Analyzing Kodak CTP's Core Technology Advantages: High Precision, High Efficiency, and Eco-Friendly Innovation
In the printing industry, the quest for higher precision, greater efficiency, and more sustainable development always centers on the plate-making stage, a crucial link that connects all parts of the process. When numerous printing companies are choosing from a wide array of CTP (Computer-to-Plate) equipment, one familiar name-Kodak-often becomes the focus with its CTP solutions.
So, what exactly are the core technologies that help Kodak CTP stand out in such fierce competition? Why have its square dot technology, intelligent environmental compensation system, and revolutionary waterless plates become industry benchmarks? This article takes a deep dive into these key advantages to reveal the strong support behind Kodak's CTP technology.

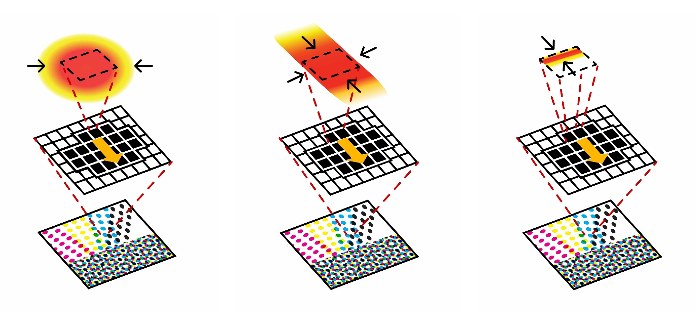

1. Core Technology: Square Spot Laser Imaging (SQUAREspot)
One of Kodak CTP's core competitive advantages is its unique square spot laser imaging technology (SQUAREspot). This technology breaks the limits of traditional round laser spots, bringing significant performance improvements:
1. Even energy distribution: Traditional round laser spots have a Gaussian energy distribution (strong in the center, weak at the edges), which causes blurred dot edges in imaging. Square spots, on the other hand, distribute energy very evenly across the entire exposure area.
2. Sharp dot edges: The uniform energy makes the edges of the imaged dots extremely sharp and clear. This directly results in:
- More precise dot reproduction: It can more reliably achieve fine frequency modulated screens (like 20-micron) in printing.
- Lower dot gain: The dot size changes less during printing, so the color stays more consistent.
- Faster ink-water balance: After starting up the press, it only takes 5-10 sheets to reach a stable ink-water balance (traditional technology may require more than 15 sheets), greatly reducing startup waste and saving time and materials.
3. Stable imaging quality: Square spot technology ensures that plates produced at different times and on different machines have highly consistent imaging quality.
2. Intelligent Environment Compensation System: Ensuring Production Stability and Precision
The printing workshop environment (such as changes in temperature and humidity, or differences in plate flatness) greatly affects plate-making accuracy. Kodak CTP effectively addresses these challenges with its advanced intelligent compensation system:
Dynamic Focusing System:
- Uses low-energy laser to measure, in real-time and with high precision, the distance from the plate surface to the laser head.
- Automatically adjusts the laser focus instantly, ensuring precise focus even if the plate surface has slight unevenness.
Temperature Compensation System:
- Automatically monitors and compensates for thermal expansion and contraction of the plate caused by environmental temperature changes.
- Ensures that the registration accuracy of plates output at different times or from different machines remains stable within ±10 microns (about one-seventh the diameter of a human hair), meeting high-precision printing requirements.
High-Precision Cylinder and Magnetic System:
- The plate is firmly secured on a high-speed rotating cylinder (up to 200 rpm) by a strong magnetic system.
- Ensures smooth plate-making and supports high-line printing (such as 175 lines) on coated paper.
Distributed Plate-Making Consistency:
- Multiple Kodak CTP machines can work collaboratively to produce different color plates of the same job.
- The system ensures consistent registration accuracy across all devices, keeping errors within ±40 microns, significantly improving production efficiency and flexibility for large or high-volume print jobs.
3. Revolutionary Eco-Friendly Technology: Kodak Thermal Non-Chemical Plates
Kodak's Thermal non-chemical plate technology is a major breakthrough in environmentally friendly printing, addressing the pollution, cost, and operational complexity caused by traditional chemical plate processing.
Core Technical Principle:
- The plate coating uses a unique 0.9g/m² single-layer ultra-thin hydrophobic resin.
- After CTP laser exposure, the resin in the exposed areas cross-links to form a durable oleophilic image area.
- No chemical development is needed: Unexposed non-image resin areas are completely removed during the first 5-10 sheets of printing through the mechanical shear force of fountain solution and ink.
Key Advantages:
- Eliminates chemical processing completely: no need for plate processors, developing solutions, replenishment solutions, or maintenance.
- Zero wastewater discharge: completely avoids the environmental pollution and disposal issues of chemical solutions.
- Significantly reduces costs.
- Improves production stability and efficiency.
- High quality and print durability: excellent imaging, capable of over 200,000 impressions, meeting various needs including short-run UV printing.
- Complies with environmental certifications, helping printing companies achieve eco-labels such as Austria's national eco-label.
Real-World Benefits (Example from a Printing Company):
- Saves about 90,000 RMB per year in plate processor maintenance.
- Daily savings: 95 liters of developer + 250 liters of water + 168 kWh of electricity.
- Savings per 10,000 m² of plates produced: 800 kWh of electricity + 180,000 liters of water.
- Eliminates the annual disposal of 1,300 liters of used developer solution.
4. Comprehensive Product Line Meets Diverse Needs
Kodak offers a wide range of CTP products to ensure that printing companies of different sizes and business types can find the right solution:
Quintessence Series: Known for cost-effectiveness and reliability, meeting the needs of mainstream printing companies (e.g., Quintessence 800 series, flat-sheet speed up to 30 sheets/hour).
Superb Series: Highly automated, with higher production efficiency and significantly lower energy consumption (e.g., Superb Q800 consumes 80% less energy than similar products).
Superb Magnus Q4800: Designed for extra-large formats and ultra-high production, handling plates up to 1.6x2.87 meters, the only CTP in the world that can handle two 1.65-meter-wide plates simultaneously, highly automated, winner of the Pinnacle InterTech Award.
ACHIEVE System: Designed for emerging markets or customers seeking an integrated solution, including plate-makers, workflow software, plates, and a full suite of configurations.
This is exactly why Kodak CTP has continued to earn the trust of numerous printing companies around the world. Choosing Kodak CTP means opting for high precision, high stability, high efficiency, and future-oriented sustainable capabilities.
After all, in an era of slim profits, the technology that can bring both money and reputation is the real winning strategy. And Kodak CTP is helping more and more printing companies carve out this win-win path.
